PHYLOGENETIC SELECTION GUIDED SACCHAROMYCES CEREVISIAE S288C GLUCOSE FERMENTATION MODELING

ASHISH RUNTHALA¹*, ANKITASH TULYANI², DHIRAJ SHARMA³, MAHAVEER SINGH^4
1Biological Sciences, Birla Institute of Technology & Science, Pilani, Rajasthan, India
²Department of Pharmacy, Birla Institute of Technology & Science, Pilani, Rajasthan, India
³Department of Bioinformatics, AdiBiosolutions, Chandigarh, Punjab, India
⁴Department of Pharmacy, Birla Institute of Technology & Science, Pilani, Rajasthan, India
* Corresponding Author : ashish.runthala@gmail.com

Received : 22-02-2011     Accepted : 22-03-2011     Published : 21-06-2011
Volume : 3     Issue : 1       Pages : 178 - 184
Int J Bioinformatics Res 3.1 (2011):178-184
DOI : http://dx.doi.org/10.9735/0975-3087.3.1.178-184

Conflict of Interest : None declared
Acknowledgements/Funding : All the listed authors have agreed to all of the contents. I hereby ensure that this agreement has been attained for submission and management of communication between the journal and the listed co-authors, before and after publication. I also expres

Fermentation products are indigenous to many civilizations, and they have been produced by industries since a long time. Saccharomyces cerevisiae S288C (commonly known as baker's yeast) is the strain mainly used in the Glucose based fermentation industries. We have seen the use of same yeast strain at different places with different Phenotypic Constraints. The way to improve the adaptability of considered strain for desired phenotypic conditions, using smart selection of genes through cybernetic modeling is illustrated. Phylogenetic homologues for all S. cerevisiae S288c Glucose Fermentation pathway genes were screened to search evolutionarily related functional domains in other yeast strains like Saccharomyces cerevisiae YJM789, Candida glabrata CBS138, Kluyveromyces lactis NRRL Y-1140, Ashbya gossypii ATCC10895 etc., which are adapted naturally in different set of environment. We observed that Saccharomyces cerevisiae YJM789, Candida glabrata CBS138, Ashbya gossypii ATCC10895, Kluyveromyces lactis NRRL Y-1140 possess highly conserved functional domains, which can be carefully selected based on usage. This study aims at designing an algorithm to select and incorporate evolutionary homologues for genes of a considered strain, which mostly show sub-optimal performance in the desired set of experimental constraints. Such a consideration of native icroenvironment and volutionary closeness in the selection of functional homologues of the entire genetic set can thus be significantly fruitful.

Cybernetic, Phylogeny, Domains, Homologues, Micro-environment.

One of most important yeast, Saccharomyces cerevisiae has been a very useful fungus for many millennia [1,25] . This single-celled model organism is used for studying cellular and molecular processes in eukaryotes and is used for making bread, beer, wine, enzymes, and pharmaceuticals [2] . The genome is composed of about 12 million base pairs (Mb) and contains 6,275 genes [3] . Saccharomyces cerevisiae S288C (Considered Strain) is commonly used model yeast in fungal molecular research including sequence analysis, genetic mechanism in the metabolic pathways, resistance to antifungal drugs, and the investigation of factors of pathogenicity, such as adhesion [4] . This simple eukaryote (also known as bakers' yeast) has many advantages as a research system: small size, rapid growth, complete sexual life cycle, safety, well-characterized genetics, a completely sequenced genome, and not least, the world-wide community of yeast genetics researchers as a resource base. Fermentation based thermodynamic parameters have been studied have also revealed different enthalpic compensations for the Yeast Hexokinase (HXK) Isozymes HXK1 & HXK2 [5] . Differential Requirement of Yeast Sugar Kinases is already established for the Catabolite Repressed State [6] . All these studies pave a way to study the complete mechanism of the fermentation pathway of yeast Saccharomyces cerevisiae S288C to find its suitable and biologically significant homologues from known structures to consider them within other yeast species like Saccharomyces cerevisiae YJM789, Candida glabrata CBS138, Kluyveromyces lactis NRRL Y-1140, Ashbya gossypii ATCC10895 based on the desired constraint set of requirements [7] . Recently a phylogenetic analysis was attempted on Pistacia L. for a completely different objective to extract evolutionarily conserved information, based on morphological data [8] . Ultimate objective of this multi-component, or multiple gene based optimization analysis is to scratch the homologous variants of all possible genes which might be functioning at sub-optimal expression levels under selected set of constraints. This study thus suggests the algorithm to select genetic variants of the considered glucose pathway genes to highlight the fact that micro-organisms always propagate best in the conditions which are closer to its actual native growth conditions, and can thus be significantly fruitful.

Methodology includes getting information from different sources to analyze certain key parameters which can be used for improving the fermentation process efficiency. This methodology was developed in the 7 months tenure from August 6th 2009 to March 03rd 2010, in Birla Institute of Technology & Science College, INDIA on my system. One such algorithm was recently proposed to identify Streptomyces noboritoensis TBG-V20 variants with cellulase production based on the Neighbor-Joining phylogenetic analysis of 16S-rRNA and morphological features [9] . This algorithm considers fermentation pathway genes as different variables and the optimization problem can thus be broken down to predict a set of genes which can proliferate and respond well under the desired set of constraints, as bulleted below:
i. Sequence retrieval: Saccharomyces Genome Database (SGD) was used for the study, which provides scientific database to molecular biology and genetics of the yeast. SGD provides many resources to compare and integrate information on genomic sequences and associated information.
ii. Sequence comparison: Sequence Similarity Query Tool employing PSI-BLAST Sequence Alignment Algorithm was used for Sequence comparisons to predict the evolutionary relationship of specific protein sequences. Genome-wide Protein Similarity View program and Fugal Alignment Viewers were then used for analyzing the alignment between the considered Sequences.
iii. Cluster Probable Homologues: Sacch3D was then employed to organize and present structural information about the considered set of fermentation pathway proteins and their putative homologues.
iv. Estimating degree of closeness: From the clusters, Phylogeny trees were computed to find the biologically close sequences for the considered genes. These tools helped in estimating the functional relationships between different considered genes and thus the possible Evolutionary conserved nature of their protein folds was analyzed.
v. CYGD verification: Comprehensive Yeast Genome Database (CYGD) was also used finally to compile genetic data to verify the functional relationships of the Saccharomyces cerevisiae‘s considered genes and the other related species. Thus we confirmed genes with scores showing the degree of closeness for the considered gene and thus 25 trees were drawn for all genes of the Glucose Fermentation Pathway. The details for considering these genes individually as each of them is there for a specific purpose is elaborated in [Table-1] and this Methodology is briefly given as Flowchart in [Fig-1] .

Cybernetic modeling approach used in the article streamlined the optimal requirements and resultant productive end-products of the individual reaction steps involved in the glucose fermentation pathway. Sequential utilization of substrates with the preferential utilization supporting the higher growth rate is well characterized and can be optimally employed to stabilize the dynamics of diauxic growth. Objective for this study solved the purpose and highlighted that we can use the enzymes which we want in for a specific reaction, instead of extra cell survival pressure burden caused by the transcriptions and translations of additional genes not required for the economic scaled fermenter runs. Thus instead of studying and optimizing ui and vi , variables respectively for enzyme synthesis and activity for each reaction step involved in the pathway, we can make a combined set constant of 2 variables for all the reactions considered in the fermentation pathway, as indicated in example below.
0.21A1 + 0.16A2 + 0.76A3 + 0.48A4 + 0.27A5 + 0.11A6 ------> 0.76P1 + 0.23P2
In this equation for example, 6 reactants form two products. If we just require Product P1, we can essentially substitute constant 0.23 with 0. This will essentially redirect cell chemical load for just the production of Product P1. Similarly, we can also remove unwanted genes or think of substituting the genes with more efficient genes with better productive rate constants from related genera.
Biological process optimization control can thus be decomposed into a sequence of elementary components. Each elementary component actually steers the reaction toward its physiological objectives in an optimal manner. The cells normally utilize limited pool of resources in an optimal manner. So, if genetic alterations were made feasible, i.e. if certain genes for existing pathway enzymes, not required for the considered fermentation pathway were deleted, then we could actually think of further enhancing overall productivity of the fermentation pathway, by setting the corresponding cybernetic variables to zero in the linear optimization equation for the deleted genes. Otherwise also, if there would have been genetic alteration of the gene(s) encoding key enzyme(s), we could have used fractional cybernetic variable for activity.
From our analysis, we studied the reasonably conserved nature of PGI1 signature 1 and 2 domains across the species. Similar was the case for FBA1 signature 1 & 2 domains. We also investigated that almost all genes have their more productive homologue copy across the species, possibly evolved because of differential phenotypic & chemical constraints on them. More productive copy of TPII was also found as homologous in Candida, Valterwaltozyma, Ashbya strains. TDH1, TDH2 and TDH3 genes were also found to have variants in different strains based on the available survival pressures on them. An almost exact copy of PGK1 was also visualized. ENO1 and ENO2 domains were found 100% conserved in Candida, Vanderwaltozyma, Ashbya strains. PYK2 and CDC19 were also shown to catalyze production of phosphoenolpyruvate to pyruvate, and this property was found to be evolutionary closest in Candida, Vanderwaltozyma, Ashbya strains. PDC6, PDC5 and PDC1 were also found structurally closest in Candida, Ashbya and Kluveromyces strains. Such strains were also found closest for ADH5, ADH4, ADH3, and ADH2 genes of Saccharomyces Cerevisiae 288C genes.

In the detail analysis of the genes involved in glucose fermentation in Saccharomyces cerevisiae S288C we found that each gene contains a specific function, based on the domain region. It was revealed that other yeast species contain the homologous genes, being almost similar with the genes involved in glucose fermentation in Saccharomyces cerevisiae S288C and also share complete homology at the conserved domain regions. This indicates the conserved nature of the functional domains across the yeast species and hence can be used for careful selection of genes. In the Entire Glucose Fermentation Pathway, Hexokinase-1(HXK1), Hexokinase-2(HXK2) and Glucokinase-1(GLK1) were found to contain conserved hexokinase domain to catalyze the phosphorylation of keto- and aldohexoses (e.g. Glucose, mannose and fructose) using Mg-ATP as phosphoryl group donor [6] Similarly, homologous copies of the following genes were found in different strains like PGI1 (Phosphoglucose isomerase) signature 1 and 2 domains, which catalyze the reversible isomerization of glucose-6-phosphate and fructose-6-phosphates. PFK1 and PFK2 (Phosphofructokinase domain) which catalyzes phosphorylation of fructose-6-phosphate to fructose-1,6-bisphosphate by ATP was also reasonably conserved across the species. An almost similar case was observed by [10,11] for FBA1(Fructose-bisphosphate aldolase) class-II Signature 1 and 2 domains, which was found to catalyze the reversible aldol cleavage or condensation of Fructose-1, 6-bisphosphate into DHAP and glyceraldehyde 3-phosphate, and investigated TPII (Triosephosphate isomerase) domain [12] , which catalyzes the reversible interconversion of glyceraldehyde 3-phosphate and DHAP was found as homologous in Candida, Valterwaltozyma, Ashbya strains Triose Phosphate Dehydrogenase -1,2,3 genes. Triosephosphate Dehydrogenase-1,2,3 genes [13] (TDH1, TDH2 and TDH3) containing Glyceraldehyde 3-phosphate dehydrogenase domain, which is involved in forming a covalent phosphoglycerol thioester intermediate, were also found to have variants in different strains based on the available phenotypic conditions to them for survival [14] . An almost exact copy of PGK1 (Phosphoglycerate kinase), catalyzing second step in the second phase of glycolysis, i.e. reversible conversion of 1, 3-diphospho-glycerate to 3-phosphoglycerate and an ATP molecule was also visualized [15] . Phosphoglycerate mutase, which catalyze transfer of phosphate groups between the three carbon atoms of phosphoglycerate was also investigated by [16] . ENO1 and ENO2 (Enolase) domain which catalyzes dehydration of 2-phospho-D-glycerate to phosphoenolpyruvate were found 100% conserved in Candida, Vanderwaltozyma, Ashbya strains [17] PYK2 and CDC19 (Pyruvate kinase), were also shown to catalyze conversion of phosphoenolpyruvate to pyruvate with the concomitant phosphorylation of ADP to ATP, and this property was found to be evolutionary closest in Candida, Vanderwaltozyma, Ashbya strains. PDC6, PDC5 and PDC1, which contain Thiamine pyrophosphate; and which requires thiamine pyrophosphate (TPP) (vitamin B1) as a cofactor [18] . Candida, Ashbya and Kluveromyces strains were found to be closest for ADH5, ADH4, ADH3, and ADH2 genes of Saccharomyces Cerevisiae 288C genes which contain Alcohol dehydrogenase to catalyze reversible oxidation of ethanol to acetaldehyde with the concomitant reduction of NAD [19] .

This shows that glucose fermentation pathways also take place in these yeast species and they can be used to carryout the fermentation process in the industry at an enhanced production rate using cybernetic modeling of the variables. Some species like Saccharomyces cerevisiae YJM789, Candida glabrata CBS138, Ashbya gossypii ATCC 10895, Kluyveromyces lactis NRRL Y-1140 were found to contain highly conserved domains of almost all genes with average scores closer to 0.0582, 0.09340, 0.11499, and 0.13436 respectively. But, Aspergillus and Yarrowia strains were found to be evolutionarily farthest, with no such obvious similar functionally conserved domains with their average scores being almost 0.19 and 0.27 respectively. So, there is a need to check the evolutionary conserved nature and scores to select genes for desired strain development for considered environmental constraints for the fermentation process as they can be effectively used instead of Saccharomyces cerevisiae S288 with additional evolved features, depending on our usage.

All the listed authors have agreed to all of the contents. I hereby ensure that this agreement has been attained for submission and management of communication between the journal and the listed co-authors, before and after publication. I also express my gratitude to Dr. Shibasish Chowdhury who helped me at various times in combating some logical problems. Dhiraj initially started the work with me. Both of us worked on different aspects of the manuscript. Ankitash later helped in generating different phylogram images.

[1] Maitra P.K. and Lobo Z. (1977) Molecular Genetics and Genomics, 156(1), 55-60.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[2] Sprague G.F. Jr. (1977) The Journal of Bacteriology, 130(1), 232-241.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[3] Brazma A., Vilo J., Ukkonen E. and Valtonen K. (1997) 'Proceedings of the Fifth International Conference Intelligent Systems for Molecular Biology' ISMB-97, Published by AAAI Press, 65-74.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[4] Zhenglong G., David L., Petrov D., Jones T., Davis R.W. and Steinmetz L.M. (2005) The Proceedings of the National Academy of Science USA, 102(4), 1092-1097.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[5] Bianconi M.L. (2003) The Journal of Biological Chemistry, 278(21), 18709-18713.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[6] Bisson L.F., and Fraenkel D.G. (1983) The Proceedings of the National Academy of Science USA, 80(6), 1730-1734.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[7] Lowe S.L. and Reithel F.J (1975) The Journal of Biological Chemistry, 250(1), 94-99.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[8] Al-Saghir M.G. (2010) Journal of Plant Sciences, 9(1), 28-35.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[9] Arunachalam R., Wesely E.G., George J., and Annadural G. (2010) Current Research in Bacteriology, 3(1), 15-26.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[10] Clifton D. and Fraenkel D.G. (1982) Biochemistry, 21(8), 1935-1942.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[11] Compagno C., Ranzi B.M. and Martegani E. (1991) FEBS Letters, 293(1-2), 97-100.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[12] Scott E.W. and Baker H.V. (1993) Molecular and Cell Biology, 13(1), 543-550.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[13] Kumar A., Agarwal S., Heyman J.A., Matson S. and Heidtman M. (2002) Genes and Development, 16(6), 707-719.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[14] McAlister L. and Holland M.J. (1985) The Journal of Biological Chemistry, 260(28), 15019-15027.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[15] Klein C.J., Olsson L. and Nielsen J. (1998) Microbiology, 144(1), 13-24.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[16] McAlister L. and Holland M.J. (1982) The Journal of Biological Chemistry, 257(12), 7181-7188.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[17] Brewer J.M., Glover C.V., Holland M.J. and Lebioda L. (1997) Biochimica et Biophysica Acta, 1340(1), 88-96.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[18] Boles E., Gubbles P.J. and Pronk J.T. (1998) The Journal of Bacteriology, 180(11), 2875-2882.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[19] Watson H.C., Walker N.P., Shaw P.J., Bryant T.N., and Wendell P.L., Fothergill L.A., Perkins L.A., Conroy S.C., Dobson M.J., Tuite M.F., Kingsman A.J. and Kingsman S.M. (1982) The EMBO Journal, 1(12), 1635-1640.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[20] Heinisch J. (1986) Molecular and General Genetics, 202(1), 75-82.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[21] Compagno C., Brambilla L., Capitanio D., Boschi F., Ranzi B.M. and Porro D. (2001) Yeast, 18(7), 663-670.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[22] Rodicio R. and Heinisch J. (1987) Molecular and General Genetics, 206(1), 133-140.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[23] Lam K.B. and Marmur J. (1977) The Journal of Bacteriology, 130(2), 746-749.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[24] Dickinson J.R. and Williams A.S. (1986) Journal of General Microbiology, 132(9), 2605-2610.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[25] Maitra P.K. and Lobo Z. (1977) Molecular and General Genetics, 152(2), 193-200.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[26] Hohmann S. (1991) The Journal of Bacteriology, 173(24), 7963-7969.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[27] Young E.T. and Pilgrim D. (1985) Molecular and Cellular Biology, 5(11), 3024-3034.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

[28] Drewke C. and Ciriacy M. (1988) Biochimica et Biophysica Acta, 950(1), 54-60.
» CrossRef   » Google Scholar   » PubMed   » DOAJ   » CAS   » Scopus

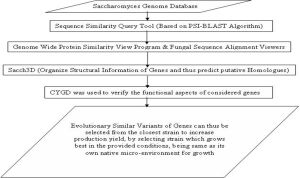

Fig. 1- Methodology Flowchart applied in the Analysis Flowchart indicating the steps to select genes for the alignment analysis to be finally used for Structural Similarity of Homologous and structurally conserved folds, ensuring the algorithm that genes with almost similar structural folds can be considered as Genetic Variables thus allowing the selection of best set of genes for the best possible Fermentation Yield based solely on the Micro-organism Growth Kinetics, mimicked to its natural native condition.

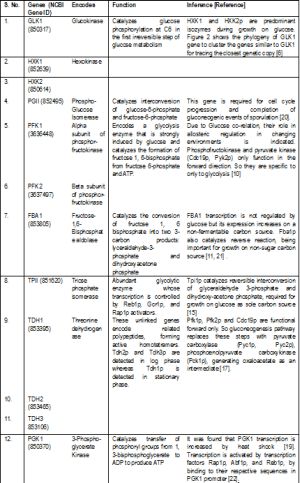

Table 1- Inter-related Genetic Network of 25 Genes It should be well simulated, so that all the genes express to the best possible optimized level, to give desired production rates in the altered conditions, feasible for us to implement. All these genes and their functional inter-relationships can be clearly understood from phylograms as shown in Figure 2 for GLK1 gene.
